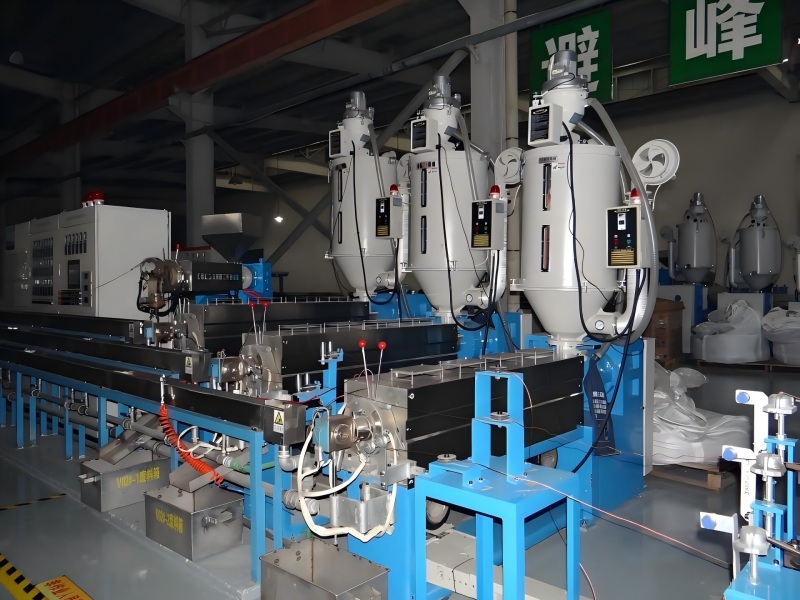

The VVF tandem extrusion line is designed for the manufacturing building wires.
Discover our state-of-the-art tandem extrusion line at S&A, designed specifically for the production of building wires. With our advanced extrusion machinery, you can achieve efficient cable extrusion for various applications, including building cables and household cables.
Our VVF tandem extrusion line is a space-saving solution that combines three production lines, optimizing space utilization and reducing labor costs.
|
Input wire diameter |
1.6mm |
1.6mm |
2.0mm |
2.0mm |
2.6mm |
2.6mm |
|
Number of wire cores |
2 |
3 |
2 |
3 |
2 |
3 |
|
Insulation thickness |
0.8 mm |
0.8mm |
0.8mm |
0.8mm |
1.0 mm |
1.0mm |
|
Sheath thickness |
1.5mm |
1.5mm |
1.5mm |
1.5mm |
1.5mm |
1.5mm |
|
Product diameter |
6.2 mm×94mm |
6.2mm×12.6mm |
6.6mm×10.2mm |
6.6mm×13.8mm |
7.6mm×12.2mm |
7.6mm×16.8mm |
|
Extrusion speed |
220m/min |
180m/min |
220m/min |
170m/min |
130 m/min |
130 m/min |
|
Wire diameter control precision |
±0.02 mm |
|||||
Discover the advanced JLK 630 frame rigid stranding machine designed for large cross-section copper and aluminum conductors. High-speed, PLC-controlled, and highly efficient. Contact us for complete cable production solutions today.
Efficient Stranding for Long and Large Cross-Section Copper and Aluminum Strands
The VVF tandem extrusion line is designed for the manufacturing building wires.
The GJS series is designed for power cable insulation and sheath extrusion, covering LV to EHV power cable.
Engineered for maximum versatility, allowing for single,double,or triple-layer co-extrusion.
The One-step silicohydride crosslink insulation extrusion line is designed for the insulation extrusion of cooper and aluminum conductors.
