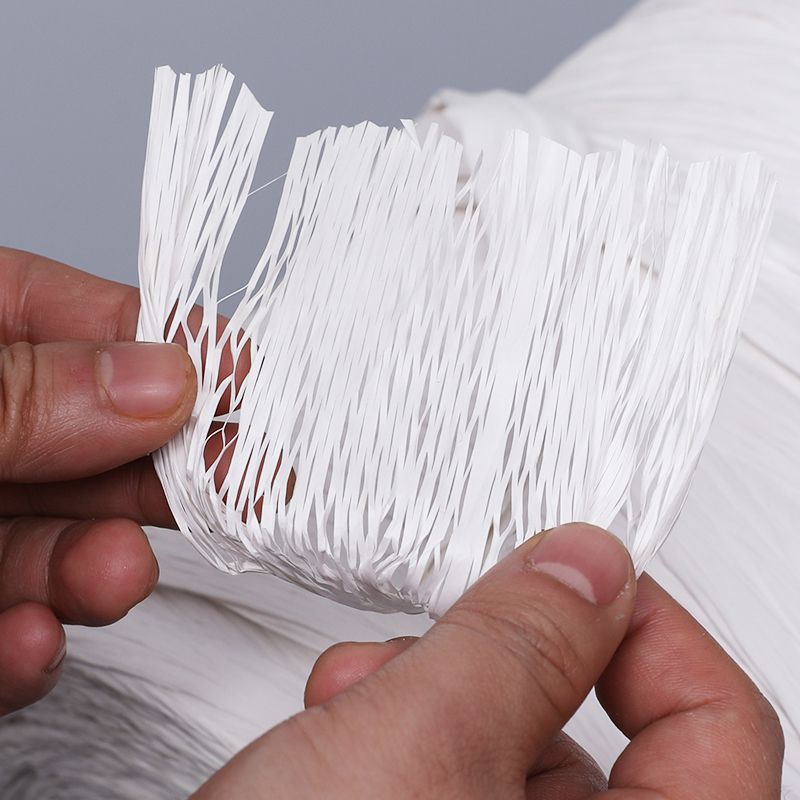

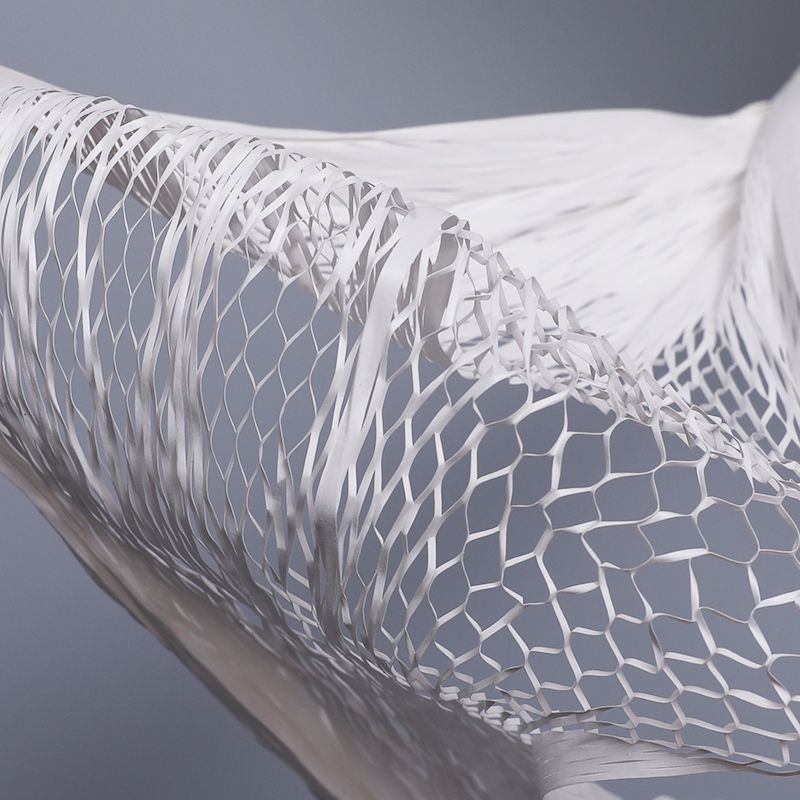

PP Cable Filler Yarn

S&A offers high-quality PP cable filler yarn, designed to enhance the lightweight structure of cables. Our filler yarn is made from premium-grade polypropylene and processed using specialized machinery to create a high-strength mesh filling material. It is commonly used in composite communication cables, steel wire ropes, power cables, and special flame-retardant cables, providing a lightweight filling solution.

Features

Excellent Flexibility
Lightweight and Non-Absorbent
High Tensile Strength
Acid and Alkali Resistant
Excellent Electrical Insulation
Environmentally Friendly

Specifications

Grade	Length per kilogram (m/kg)	Elongation (%)	Tensile Strength (N)	Thermal Shrinkage (%)	Twisted Diameter (mm)
2000D	4500	≤15	≥30	≤2.5	0.4
4000D	2400	≤15	≥50	≤2.5	0.5
5000D	1800	≤15	≥55	≤2.5	0.6
8000D	1125	≤15	≥80	≤2.5	1.0
10000D	935	≤15	≥90	≤2.5	1.2
12000D	750	≤15	≥100	≤2.5	1.5
15000D	600	≤15	≥150	≤2.5	1.8
20000D	450	≤15	≥200	≤2.5	2.2
30000D	300	≤15	≥300	≤2.5	2.6

Customized specifications are available upon request.

Note: The standard colors include white and transparent, while flame-retardant filler yarn is available in light blue. Packaging options include woven bags or cartons.
