Flat Cable Extrusion Line(100+50)

Cable extruder line for elevator traveling cable insulation and sheathing

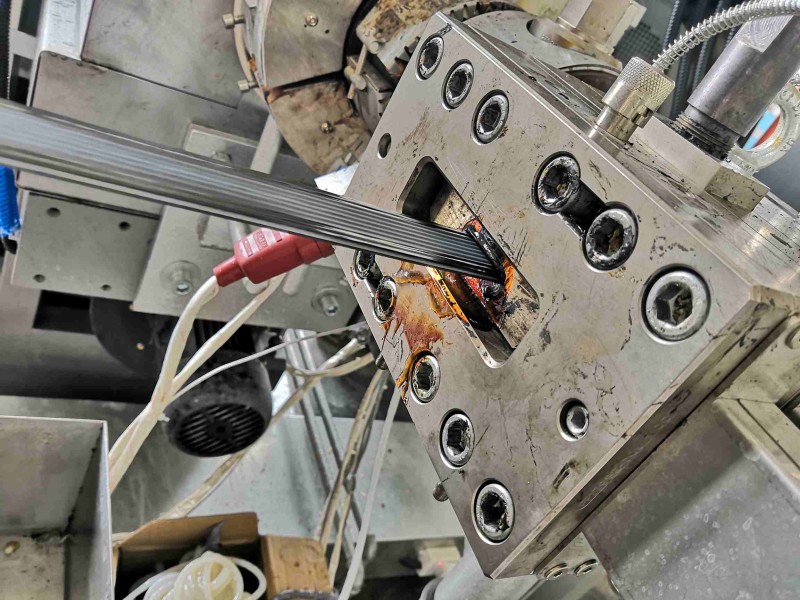

This extrusion line is designed for extrusion of the insulation and sheath of elevator flat cable.

Applicable materials include TPU and etc.

Inquiry Now

Features

Insulation Extrusion Material: TPU (Thermoplastic Polyurethane)
Control System: Touchscreen Interface and PLC (Programmable Logic Controller)
Line Speed (Traction Caterpillar): Maximum 3Om/min
Temperature Control: Our cable extrusion machinery employs Japanese RKC modules for temperature control, communicating with the PLC. The system includes a dedicated temperature control interface with an ambient temperature reference.
Siemens S7-1500 PLC Control: The entire cable extrusion machinery is controlled by the Siemens S7- 1500 PLC programmable controller, operated through an industrial panel display and interface.
Profibus Communication Bus: The implementation of a Profibus communication bus enables seamless human- machine communication and control. This system controls the entire production line based on screw speed, involving a diameter gauge for precise control. The PLC adjusts the traction speed based on external diameter fluctuations, ensuring consistent cable outer diameter.

Specifications

Model	Φ100+Φ50
Screw diameter	Φ100mm +Φ50 mm

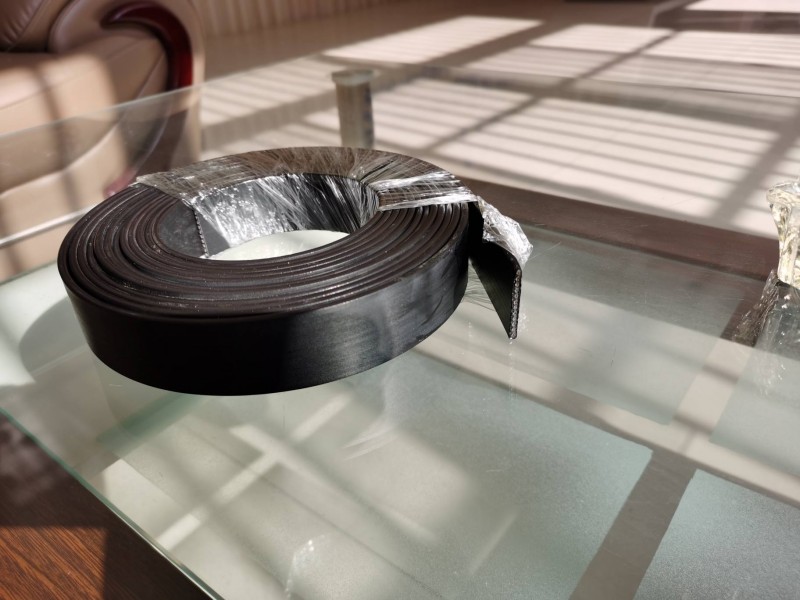

Finished wire specification	5x60mm
Applicable material	TPU and etc.
Max line speed	30m/min
Wire diameter control precision	±0.02 mm
