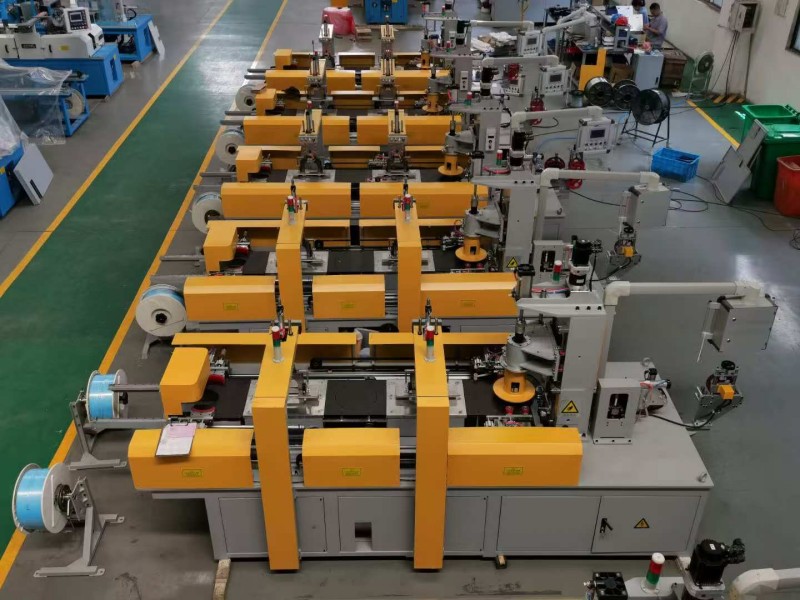

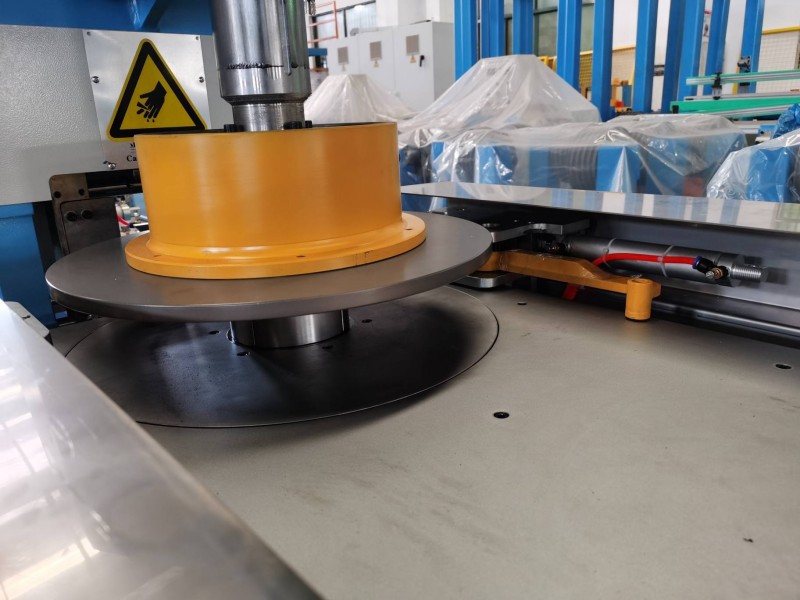

Micro-computer Automatic Coiling Machine

Efficiency and Precision Redefined: The Automatic Cable Coiling Machine with Microcomputer Control

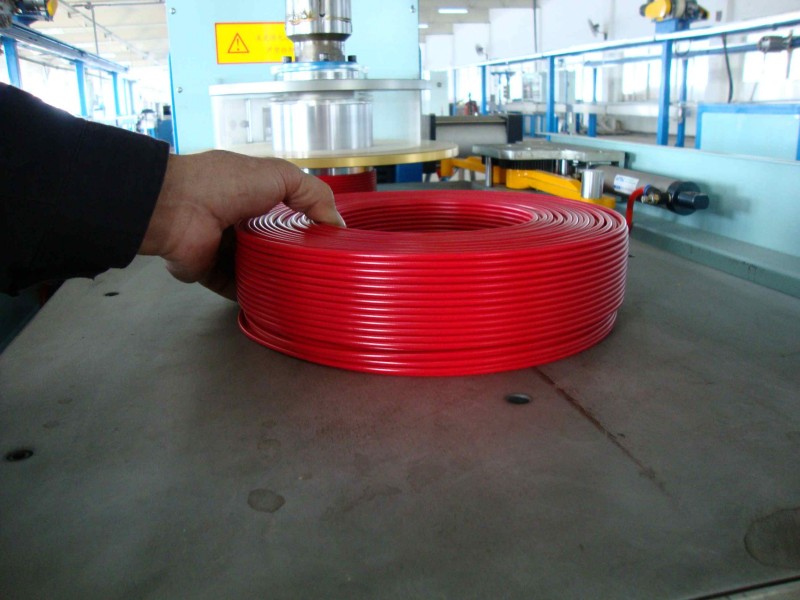

This cutting-edge coiling solution, equipped with microcomputer control, delivers tight and secure cable coiling, eliminating loose ends and seamlessly integrating with extrusion production lines or pay-off machine.

Inquiry Now

Features

The machine can be controlled by a touch panel(human-computer interface), which makes it easier to operate;
Servo motor traversing system are utilized in this machine,making the movement more coordinated and the appearance of the finished wire coils better;
This machine has automatic fault detection function, when a problem occurs, it would make beeping sounds to alert the operators;
The microcomputer can store 99 different packing specifications, if a different type of coils are to be packaged, simply choose from the stored specifications, and the machine will be ready to go.

Specifications

Model	C0836	C1246	C1860	C2060	C2480
Rotating speed	1000 rpm	800 rpm	200 rpm	150 rpm	100 rpm
Outer diameter of coils	Φ180 - 360mm	Φ200 - 460mm	Φ200 - 600mm	Φ220 - 600mm	Φ300 - 800mm
Inner diameter of coils	Φ120 - 200mm	Φ140 - 220mm	Φ180 - 250mm	Φ180 - 250mm	Φ250 - 320mm
Height of coils	40 - 80mm	50 - 100mm	60 - 180mm	60 - 200mm	80 - 240mm
Wrapping material	PVC,PE and etc.
Automatic stacking and palletizing system	Optional	Optional	Optional	Optional	Optional
