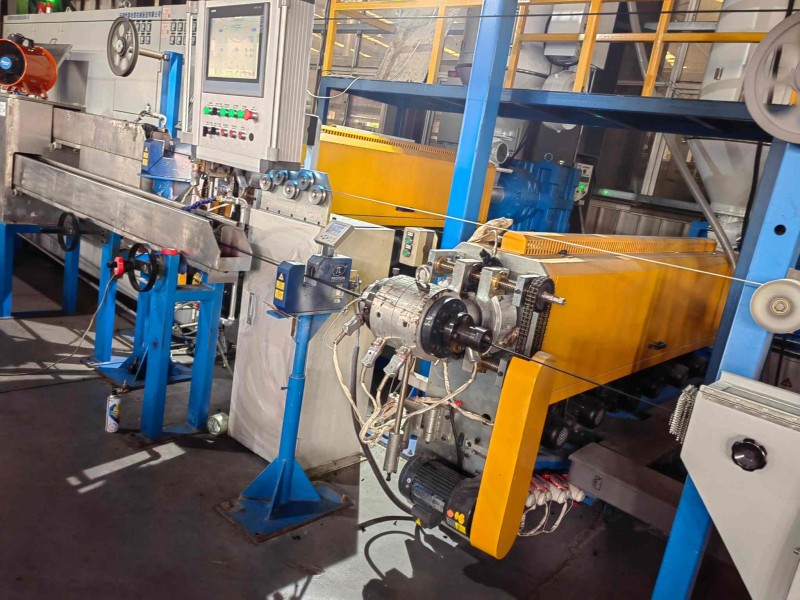

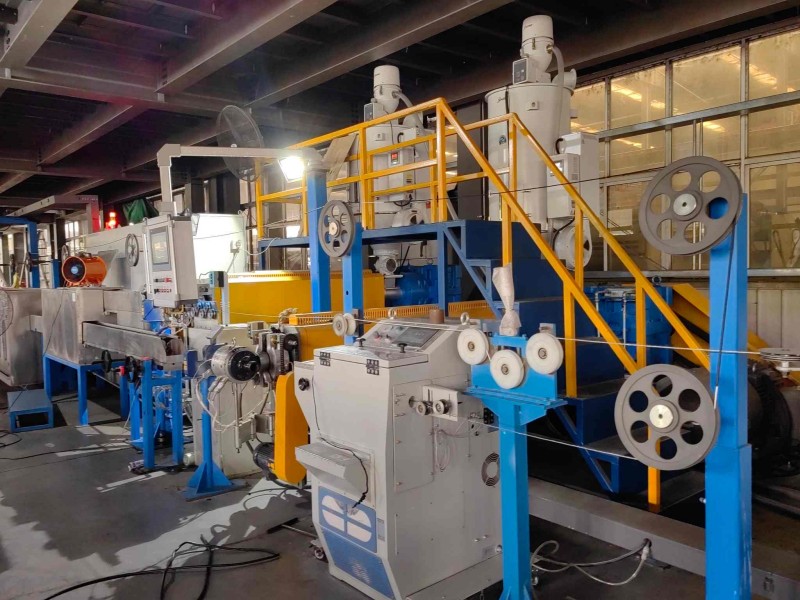

PV Cable Extrusion Production Line

Cable extruder line for photovoltaic wire insulation

The PV cable extrusion line is designed for high speed insulation and sheath extrusion for PV cables, applicable materials include PE,XLPE and etc.

Inquiry Now

Features

Our PV solar cable extrusion line utilizes high-quality screws and barrels made in Taiwan, delivering superior extrusion performance and reliable output.
The entire production line is controlled by Siemens S7 1500 PLC combined with the KTP1200 Siemens touchscreen interface. Real-time production line status monitoring enables efficient process management.
Precise temperature control is achieved using temperature controllers from the Japanese RKC series and solid-state relays (SsRs), ensuring consistent and accurate extrusion.
Our cable extrusion machinery features both automatic and manual control modes. The main extruder and traction unit can be operated in synchronization or independently. It also allows for nonlinear curve correction of extrusion volume, while the traction unit can operate in both independent and synchronized modes.
The HMI and PLC control system enables easy modification, storage, and adjustment of wire diameter. detection, line speed, spark detection, and other process parameters through the user-friendly touchscreen interface.

Specifications

Model	Φ70	Φ90	Φ80+Φ90
Extrusion amount	140 kg/hr	350 kg/hr	350 kg/hr
Applicable conductor shape	Round, Solid
Applicable material	PE,XLPE and etc.
Max line speed	300 m/min	300 m/min	200 m/min
Wire diameter control precision	+0.02 mm
Ratio	25:1	25:1	25:1
Screw rotating speed	110rpm	110rpm	100rpm
Extruder power	37kW	75kW	55kW+75kW
Finished outer diameter	Φ1-7mm	Φ1-7mm	Φ1-20mm
Control mode	Touch screen+PLC
Extrusion head	U7 Free nose	U7 Free nose	X20 Adjustable
Pay-off	Active pay-off or tension pay-off
Cooling	Water immersion cooling
Capstan	Double wheel sealed	Double wheel sealed	Double wheel or belt
Accumulator	Horizontal/12m
Take-up	Twin screw take-up machine
