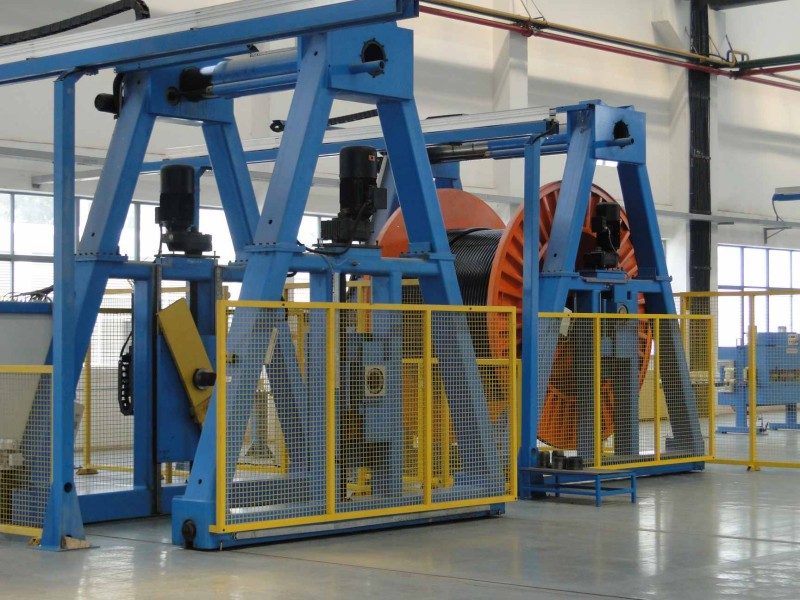

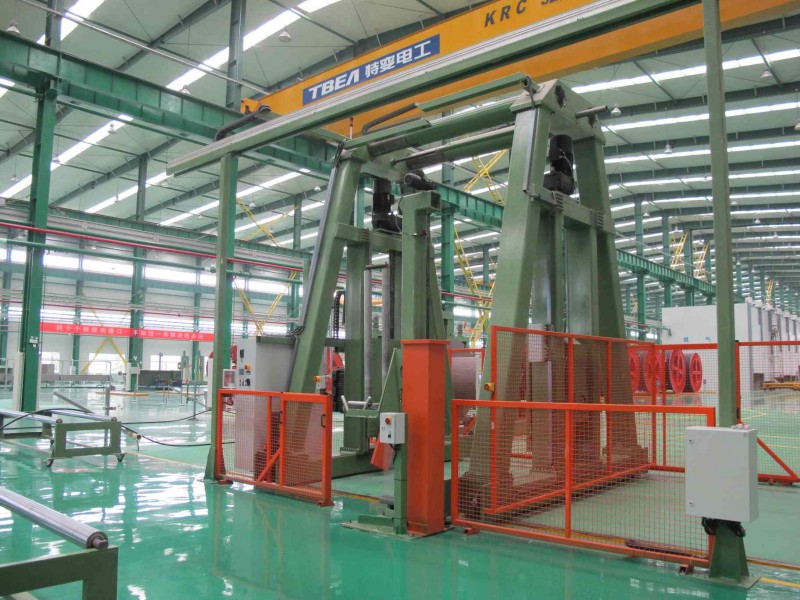

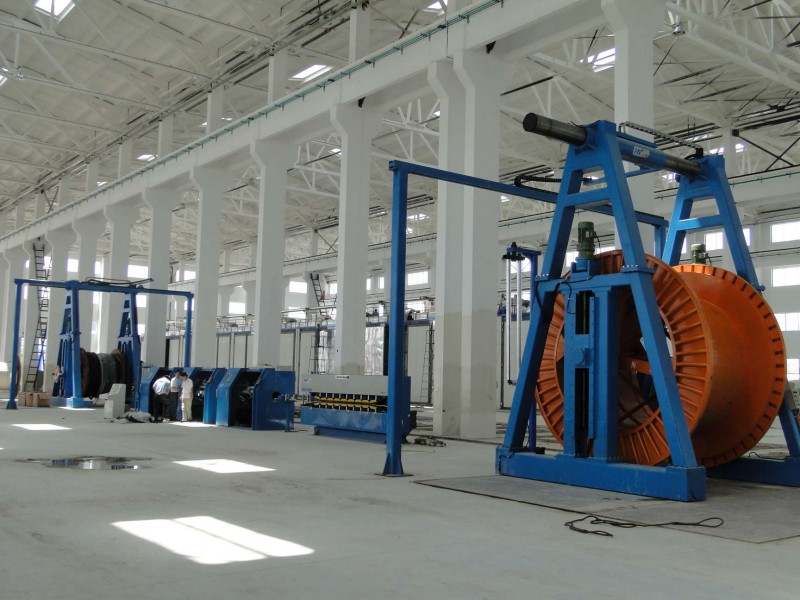

The TUA/POA ‘A’ Type Moveable Take-up/Pay-off Machine is a heavy-duty, mobile cable winding/unwinding solution for extrusion, stranding and cabling lines. With reel sizes from Φ1250 to Φ5000 and max reel weight up to 40,000 kg, it handles wire diameters from 7–180 mm, ideal for power, overhead and large-section cables.
|
Model |
TUA25 |
TUA32 |
TUA36 |
TUA42 |
TUA50 |
|
Reel diameter |
1250/2500 |
1600/3200 |
2000/3600 |
2500/4200 |
2500/5000 |
|
Max flange diameter (mm) |
2500 |
3200 |
3600 |
4200 |
5000 |
|
Min flange diameter (mm) |
1250 |
1600 |
2000 |
2500 |
2500 |
|
Min overall width (mm) |
900 |
1180 |
1500 |
1900 |
1900 |
|
Max overall width (mm) |
1900 |
2120 |
2300 |
2400 |
2500 |
|
Min barrel diameter (mm) |
500 |
800 |
2500 |
2800 |
3000 |
|
Bore (mm) |
80(100-125) |
80(100-125) |
200 |
200 |
200 |
|
Min wire diameter (mm) |
7 |
8 |
20 |
30 |
40 |
|
Max wire diameter (mm) |
70 |
120 |
140 |
160 |
180 |
|
Max rotation speed (RPM) |
7/17/37 |
7/17/37 |
6/12/22 |
6/12/22 |
6/12/22 |
|
Traverse range (mm) |
8-90 |
9-120 |
20-140 |
30-160 |
40-180 |
|
Max reel weight (kg) |
12000 |
18000 |
25000 |
30000 |
40000 |
