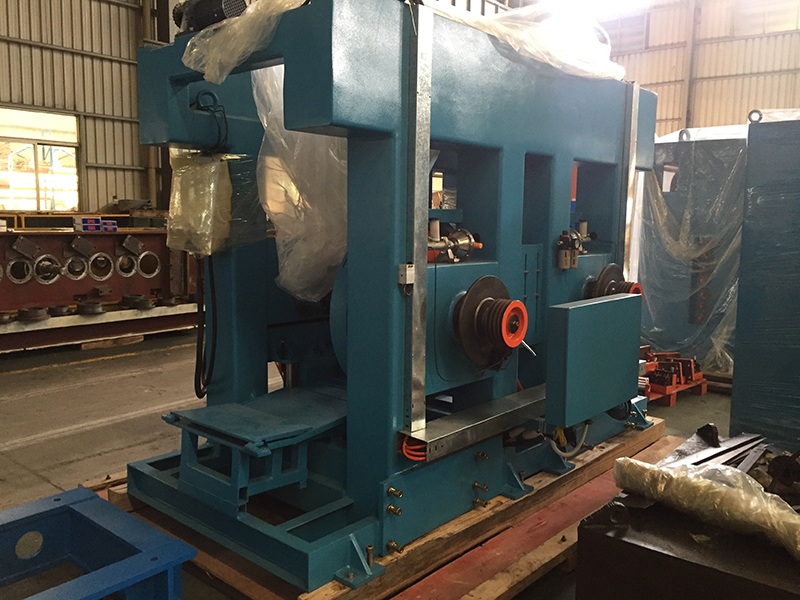

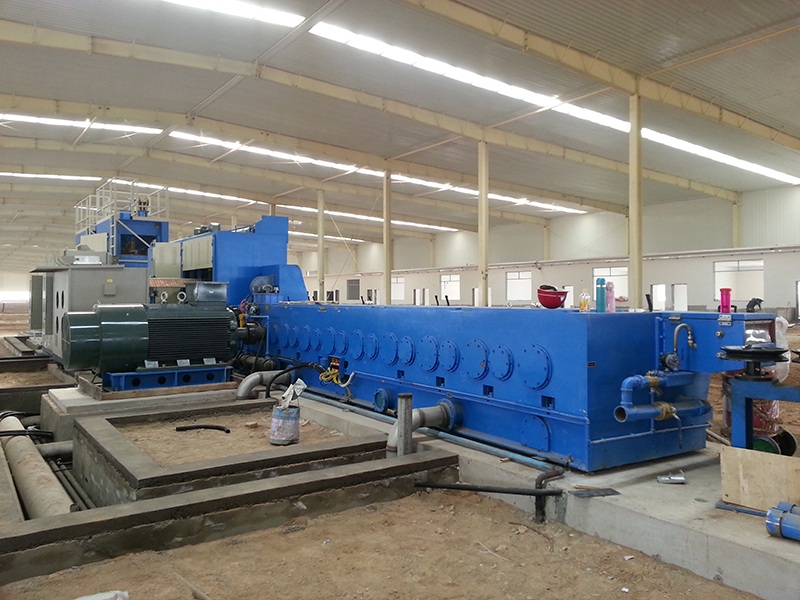

Aluminum Rod Breakdown Machine with Individual Motor

Wire drawing machine for aluminum and aluminum alloy wires

The aluminum rod breakdown machine with individual motors is used to produce aluminum wires sized ⌀1.6-4.5mm from aluminum rods of ⌀9.5mm, or wires sized ⌀2.1-4.5mm from aluminum alloy rods of ⌀9.5mm.

Inquiry Now

Features

Used for drawing round and irregular lines from aluminum and aluminum alloy rods; coiling into spools or reels.

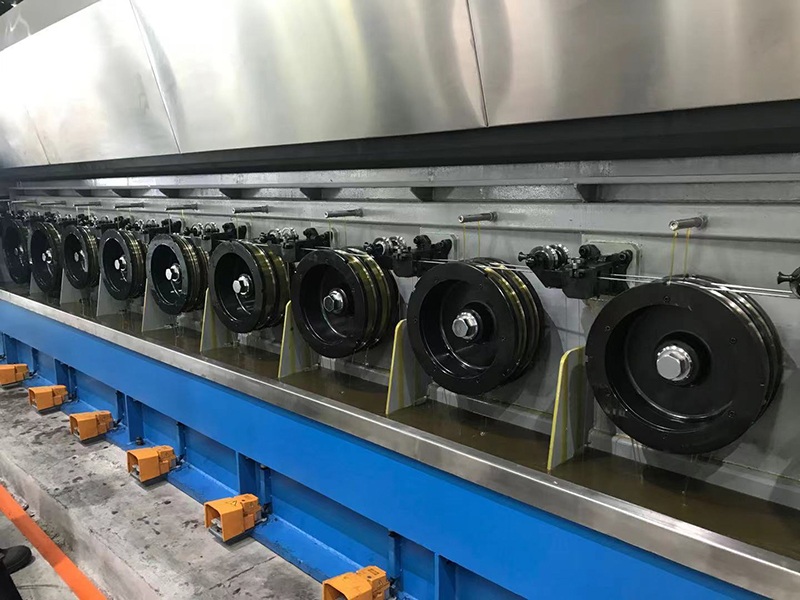

Each drawing ring in the individual motor wire drawing machine is driven by an independent motor. Each compression ratio can be appropriately set, facilitating mold matching and accommodating various grades of aluminum wire drawing.
The wire drawing machine can have either gear drive or individual motor drive structures. Additionally, single-head or double-head wire drawing machine structures can be selected based on cross-section specifications, production needs, and available space.
The take-up machine (optional) can use single spool, automatic spool change, vertical pay-off, or a combination of various take-up forms.
Gear drive is suitable for 1 series and 8 series electrical aluminum rods: individual motor drive can produce 1 series, 8 series, and 6 series electrical aluminum rods. offering stable product quality, high production efficiency, and low noise.
The electrical system uses an MMl+PLC control system for synchronized control of the production line. enabling online monitoring. Process parameters can be modified, stored, and read on the touch screen, ensuring simple and fast operation.
Auxiliary equipment such as threading machines, cold welding machines, heat exchangers, and filters for drawing oil can be provided, offering comprehensive turnkey engineering services.

Specifications

Drive Mode	Model	Inlet diameter (Mm)	Number of wires	Outlet diameter (Mm)	Max. Speed (M/S)	Max Drawing Pass	Capstan diameter (Mm)	Installed Capacity (KVA)
Shunt Drive	LWHD-450/9	Φ9.5	1	Φ2.5-Φ4.5	25	9	Φ450	350
	LWHD-450/11	Φ9.5	1	Φ2.0-Φ4.5	25	11	Φ450	420
	LWHD-450/13	Φ9.5	1	Φ1.6-Φ4.5	28	13	Φ450	480
	LWHD-450/11(S)	Φ9.5	2	Φ2.6-Φ4.5	25	11	Φ450	460
	LWHD-450/13(S)	Φ9.5	2	Φ2.0-Φ4.5	28	11	Φ450	460
In-Line Gear Drive (Single Motor)	LWHD-450/9	Φ9.5	1	Φ2.5-φ4.5	22	9	φ450	300
	LWHD-450/11	Φ9.5	1	Φ2.0-φ4.5	25	11	φ450	350
	LWHD-450/13	Φ9.5	1	φ1.6-φ4.5	28	13	φ450	400
	LWHD-450/13(2)	2*Φ9.5	2	Φ2.0-φ4.5	28	13	φ450	600
Take-up form (optional) 1: 630 Single bobbin take-up 2: 630 Dual bobbin take-up 3: 800 Single bobbin take-up		4: 800 Dual bobbin take-up 5: 820 Vertical pay-off 6: Or above combination
