Wire drawing machine for copper wires

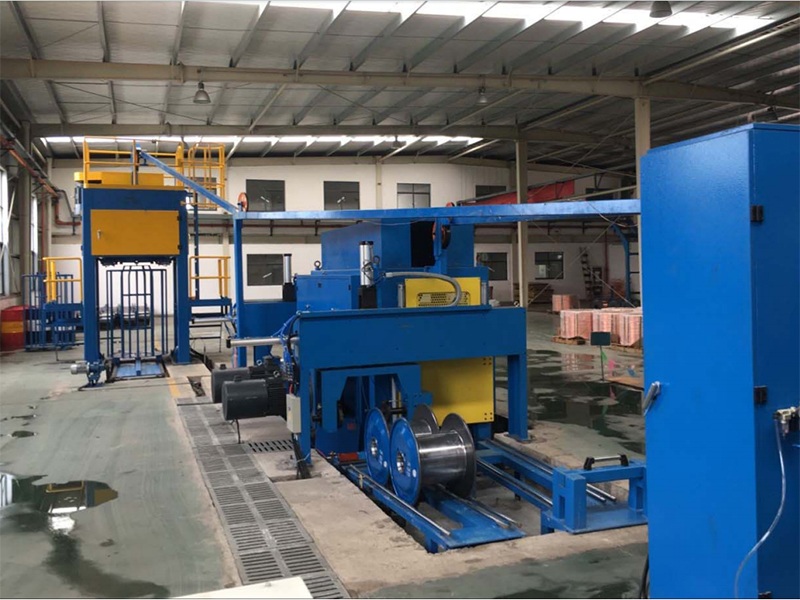

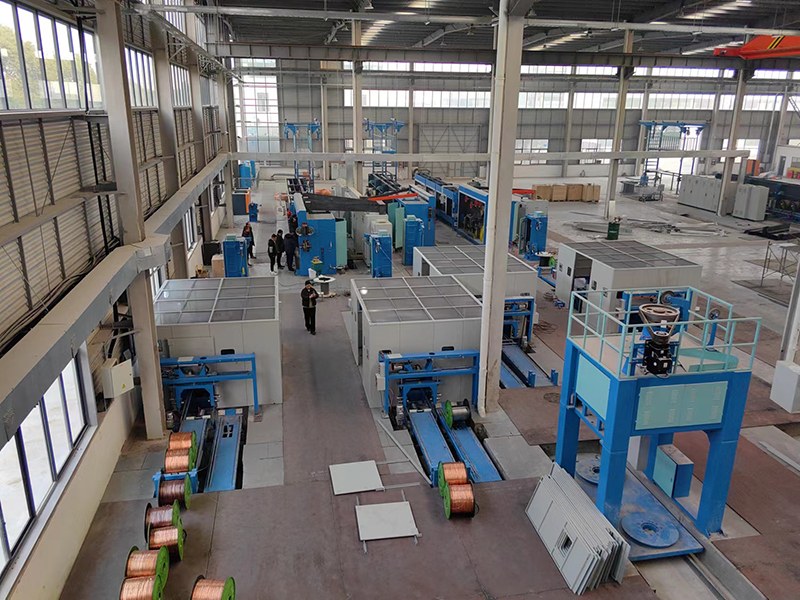

The copper rod breakdown machine with individual motor is designed for drawing copper wires from ⌀8mm low-oxygen or oxygen-free copper rods to ⌀1.2-4.5mm. This machine also performs annealing during the drawing process, producing high-quality copper wires for electrical purposes.
|
Drive mode |
Model |
Inlet wire rod diameter (mm) |
Number of wires |
Outlet wire diameter (mm) |
Max. speed (m/s) |
Max. drawing pass |
Capstan diameter (mm) |
Installed capacity (kVA) |
|
Shunt drive |
LWHD-450/9 |
⌀8 |
1 |
⌀2.1-4.0 |
25 |
9 |
⌀450 |
580 |
|
LWHD-450/11 |
⌀8 |
1 |
⌀1.7-4.0 |
28 |
11 |
⌀450 |
630 |
|
|
LWHD-450/13 |
⌀8 |
1 |
⌀1.2-⌀4.0 |
30 |
13 |
⌀450 |
680 |
|
|
LWHD-450/9(2) |
2×⌀8 |
2 |
2×⌀2.0-3.5 |
25 |
9 |
⌀450 |
1000 |
|
|
LWHD-450/11(2) |
2×⌀8 |
2 |
2×⌀1.6-3.5 |
28 |
11 |
⌀450 |
1100 |
|
|
LWHD-450/13(2) |
2×⌀8 |
2 |
2×⌀1.3-3.5 |
28 |
13 |
⌀450 |
1200 |
|
|
Inline gear drive (single motor) |
LHD-450/9 |
⌀8 |
1 |
⌀2.1-4.2 |
22 |
9 |
⌀450 |
500 |
|
LHD-450/11 |
⌀8 |
1 |
⌀1.7-4.2 |
23 |
11 |
⌀450 |
580 |
|
|
LHD-450/13 |
⌀8 |
1 |
⌀1.2-⌀4.2 |
25 |
13 |
⌀450 |
630 |
|
|
LWHD-450/9(2) |
2×⌀8 |
2 |
2×⌀2.0-3.5 |
21 |
9 |
⌀450 |
900 |
|
|
LWHD-450/11(2) |
2×⌀8 |
2 |
2×⌀1.6-3.5 |
23 |
11 |
⌀450 |
1000 |
|
|
LWHD-450/13(2) |
2×⌀8 |
2 |
2×⌀1.3-3.5 |
25 |
13 |
⌀450 |
1100 |
|
|
Take-up options 1. 630 single bobbin take-up 4. 800 dual bobbin take-up |
||||||||
