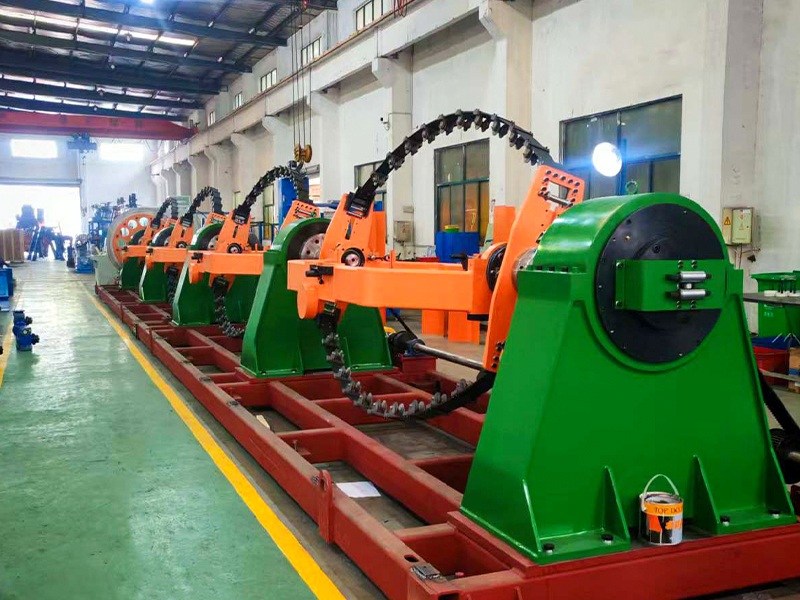

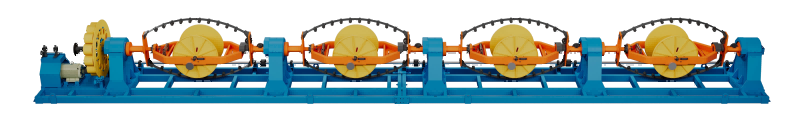

Bow Type Laying Up Line

The Bow type laying up machine is mainly used for the cable laying up process.Our high speed laying up machine can bunch up to 4*240mm²of cable.

The Bow Type Laying Up Line is a high-performance cabling solution engineered for the final assembly stage of multi-core power and control cables, where individually insulated cores are helically wound together to form a compact, round cable structure ready for sheathing.

Inquiry Now

Features

Wide Application for Multi-Specification Cables: Designed for power cable laying-up processes, it accommodates single-core cross-sections from 70mm² (Model 1250) to 240mm² (Model 1600), with a maximum capacity for 4×240mm² cables, covering mainstream specifications of low-to-medium voltage power cables.
High Efficiency & Stable Operation: The machine delivers a maximum rotational speed of 200 rpm and a constant line speed of 150 m/min, enabling continuous high-volume production while maintaining precise lay-up quality.
Uniform Tension & Superior Product Quality: The bow-type rotary structure ensures even tension distribution across all conductors, minimizing core deformation and insulation damage. This makes it ideal for stranded soft conductors and insulated cores, significantly reducing breakage rates and production waste.

Specifications

Model	1250	1600
Max bobbin number	1+5	1+5
Single cable size	70mm²	240mm²
Max rotation speed	200 pm	200 rpm
Max line speed	150 m/min	150m/min
Bobbin specification	800-1250	1000-1600
