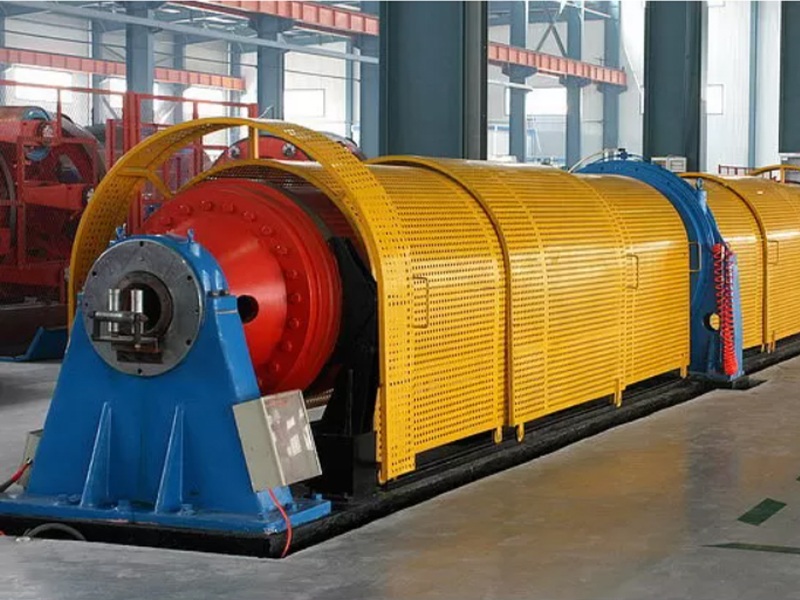

Tubular stranding line for manufacturing steel strands, copper and aluminum conductors
The Tubular Stranding Line is a purpose-built conductor manufacturing solution designed primarily for 7-core stranded conductors, combining a compact tubular frame architecture with the production flexibility required to handle the full range of conductor materials commonly used in modern cable manufacturing.The tubular design encloses the bobbins within a rotating tube, which allows all stranding elements to rotate as a unit around the central axis.
|
Model |
500 |
630 |
|
Single wire diameter |
Cu: Φ 1.2-5.0 mm |
Cu: Φ 1.2-5.0 mm |
|
Max finish wire diameter |
Φ 21 mm |
Φ 21 mm |
|
Max rotation speed |
500 rpm |
500 rpm |
|
Stranding pitch |
40-448 |
40-448 |
|
Max line speed |
150 m/min |
150 m/min |
|
Bobbin specification |
PND500 |
PND630 |
|
Capstan wheel |
Φ1250 |
Φ1250 |
|
Take-up bobbin |
PN1600 |
PN1600 |
|
Height of center |
850 mm |
850 mm |
