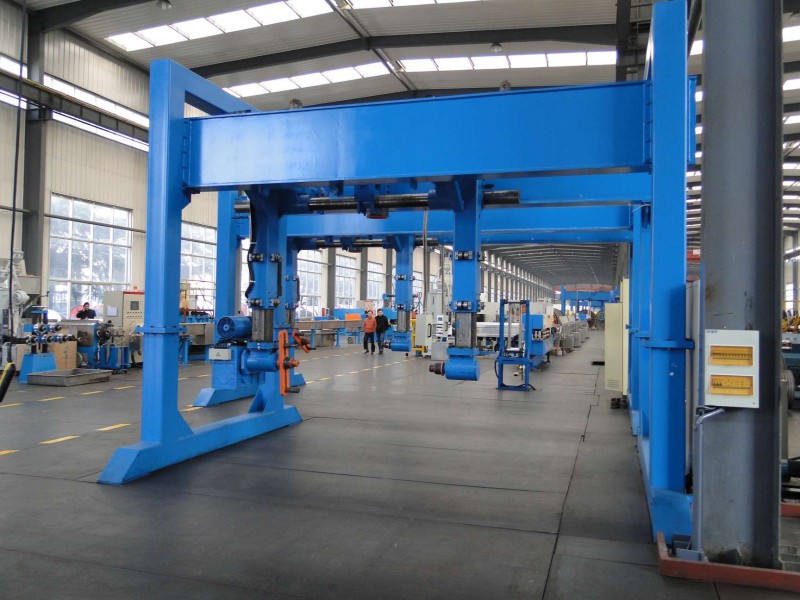

The TSXY Suspension Type Take-Up and Pay-Off Machine is designed for large-reel cable winding and pay-off operations, using a suspension-type mechanical configuration that supports the reel from above rather than from a floor-mounted cradle or shaft arrangement. This overhead suspension approach provides a series of practical handling and operational advantages for large, heavy cable reels that are difficult to manage efficiently with conventional floor-supported equipment.
|
Model |
TSXY800 |
TSXY1250 |
TSXY1600 |
TSXY2000 |
|
Reel diameter |
500/800 |
630/1250 |
800/1600 |
1000/2000 |
|
Max flange diameter (mm) |
800 |
1250 |
1600 |
2000 |
|
Min flange diameter (mm) |
500 |
630 |
800 |
1000 |
|
Min overall width (mm) |
375 |
475 |
600 |
750 |
|
Max overall width (mm) |
600 |
950 |
1180 |
1500 |
|
Min barrel diameter (mm) |
355 |
450 |
500 |
560 |
|
Bore (mm) |
80(100-125) |
80(100-125) |
80(100-125) |
80(100-125) |
|
Min wire diameter (mm) |
3 |
5 |
8 |
10 |
|
Max wire diameter (mm) |
40 |
50 |
60 |
80 |
|
Max rotation speed (RPM) |
50 |
50 |
50 |
50 |
|
Traverse range (mm) |
3-40 |
5-50 |
8-60 |
10-80 |
|
Max reel weight (kg) |
1000 |
1200 |
2000 |
2500 |
