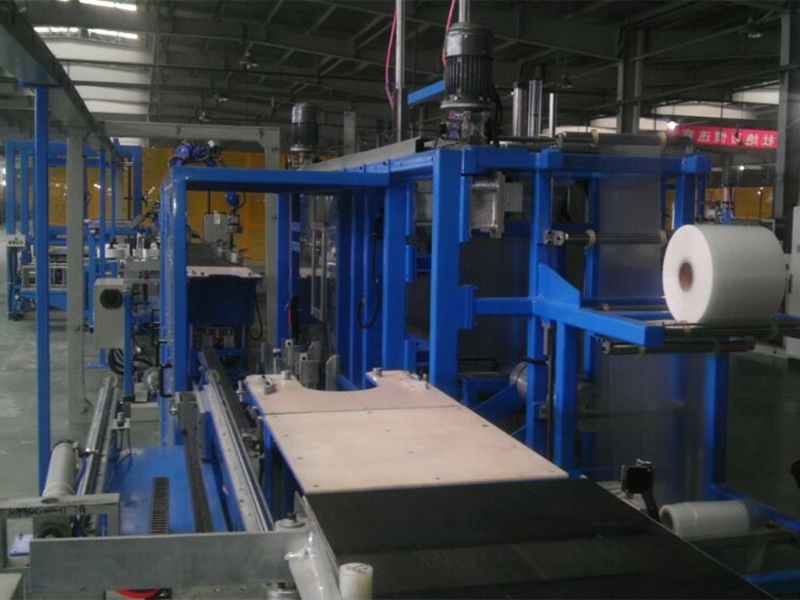

Cable coil palletizing and depalletizing system with cartesian coordinate robot
The machine is designed for efficient palletizing of cable coils. After the cable coil palletizing is full, the system automatically moves the full pallets away from the palletizing area, while empty pallets are conveyed to the cable coil palletizing area.
The cartesian cable coil palletizer is controlled by PLC, where different stacking methods can be set ahead of production;
Input and output of the pallets are separated, making transmission smoother;
Input height is low, ensuring more stacks at a limited height;
Our cartesian cable coil palletizer has the function of automatic pallet positioning, which improves precision and safety of the working process, also ensures precise and tidy stacking;
When our cartesian palletizer detects insufficient coils coming from the previous process, it would automatically sound alarms to notify operators.
|
Model |
MD - 1 |
|
Size of device |
3000 × 1500 × 3000 mm |
|
Size of pallet |
1100 × 1100 mm |
|
Weight of coils |
25 kg |
|
Production Speed |
2coils/min |
|
Maximum height of stacks |
1800 mm |
|
Installation |
Fixed on the ground |
